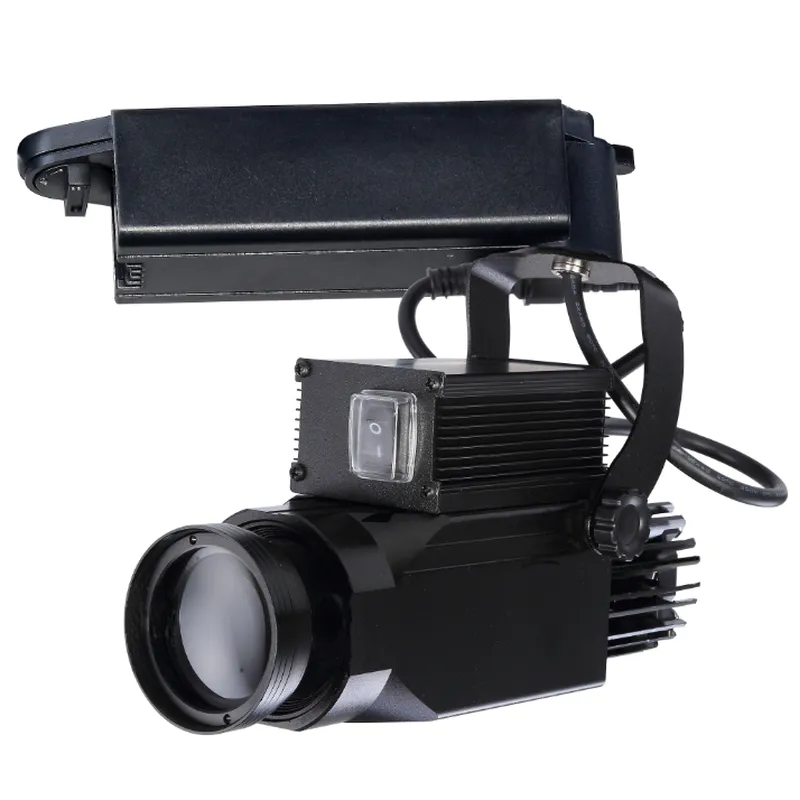

30W Track Rotated LED Gobo Projector Indoor
Input Voltage: AC100-140V/AC200-240V
LED Chip: Osram
Lens Degree: 15°/30°/50°
Projection Distance: 3-12m
Surface Treatment: Black/White
Projector Dimension: 230X170X100mm
Installation: 2/3/4 Phase Track
Image Rotatable: YES(With Remote Controller)
IP Rank: IP20
Gobo Size: OD37mm;ID23mm
Packing: 4 pcs/ctn;10 pcs/ctn
30W Indoor Track Type Roated LED Gobo Projector is equipped a single high-power OSRAM LED chip.According lwatt optimized drive solution, under hundreds of testing, realize luminous efficacy above 90%.Heat sink's 80% is made from model 1070 aluminum, heat dissipation up to 95%. Turn On /Off and Rotating/Stop functions are controllable by switch key or remote. Beam angle can be 15°/30°/50° for for your preference.
1.Projection Distance Against Image Size:
P.S.: Above is based on 15° zoom lens, 30° lens will be 2 times bigger;50° lens will be 4 times bigger.
2.Projection Distance Against Illuminance:
